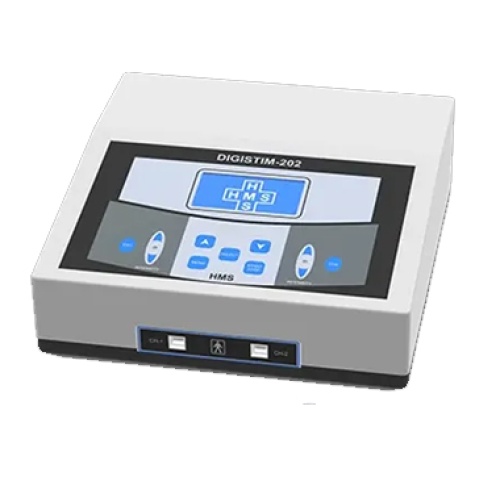

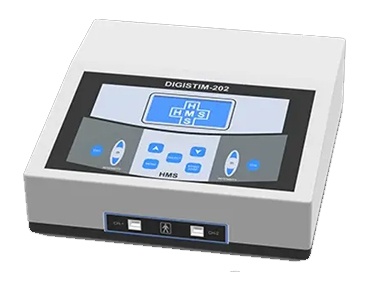

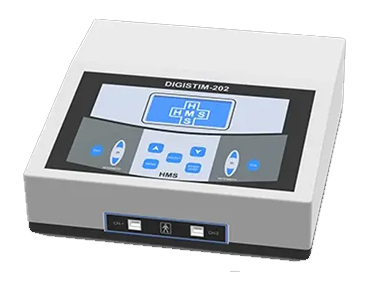

DIGISTIM® 202

DIGISTIM 202 is a computerised dual channel stimulator with MST, Dia-dynamic, TENS and FES outputs. DIGISTIM 202 presents a Special future in which both the channels can be set with two independent programs  at the same time and treat two patient simultaneously. Soft touch membrane keys are provided to select the modes and parameters. The Digital Display Indicates the output current in mA and In IG mode Rectangular / Triangular pulses can be set.

Features

  • Micro controller based circuitry
  • LCD display for therapy type and treatment time
  • Independent two channel
  • At a time two different treatment for two patients
  • 30 User memory
  • User friendly with soft touch key functions
  • Light weight plastic moulded cabinet
  • Also designed for veterinary care
  • Model : Digistim 202
  • Operation Mode : Electrical
  • Usage : Clinical, Hospital, Personal

Specifications

  • Treatment modes – Stimulator, TENS, Diadynamic and FES
  • Output current – 1 – 100 mA
  • Timer – 0 – 99 mins

Technical Data

  • Mains voltage – 90 – 270V / 50 – 60 Hz
  • Safety class – Class I, Type BF (IEC 60601 -1)
  • Dimensions – L x B x H – 23 x 20 x 8 cms
  • Weight – 1.6 Kgs
StimulatorTENSFES
  • Galvanic
  • IG Diagnostic
  • IG therapeutic
  • Plain faradic
  • Surge faradic
  • IG Therapeutic – 30 – 300 mSec (1 mSec step)
  • IG Diagnostic – .01, .03, .3, .1, 1, 3, 10, 30, 100, 300, 1000 mSec
  • Pulse type – Square, Triangular
  • Freq./ P.width – 50 Hz / 0.7 mSec
  • Surge ON time – 1 – 10 sec (1 sec step)
  • Surge OFF time – 1 – 10 sec (1 sec step)
  • Continuous
  • Burst
  • Sweep
  • Burst and sweep
  • Frequency – 2 – 250 Hz in (1 Hz step)
  • P.Width – 20 – 250 sec (1m sec step)

Diadynamic

  • DF
  • MF
  • CP
  • LP
  • Frequency – 20 – 120 Hz (1 Hz step )
  • ON time – 1 – 10 sec
  • OFF time – 1 – 10 sec
  • Ramp up/down – 1 – 10 sec
  • Availability: 1 In Stock
  • Brand: HMS
